Warhawk Gravel Bike
Warhawk Gravel Bike
Built to order
Your Cobalt is prepared for you. Timing varies with frame availability, paint, and component selection. Contact us for a current delivery estimate.
Build Ride Inspire
The Warhawk is for riders whose best routes start where the pavement ends. Its gravel-focused platform pairs room for high-volume tires with a stable stance for loose corners, washboard and long days on changing surfaces. A rigid carbon fork keeps steering direct, while rack, fender and bottle mounts make the same bike useful beyond race day. Choose Warhawk for gravel events, dirt-road exploration and mixed-surface distance when traction and tire choice matter more than a road-race feel.
Choose your build
| Build | Price (USD) | SRAM drivetrain | Fork / suspension | Wheels |
|---|---|---|---|---|
| Core 1x | $3,699 | Rival XPLR AXS 1x | Carbon rigid fork | Alloy gravel |
| Performance 1x | $4,799 | Force XPLR AXS 1x | Carbon rigid fork | Carbon gravel |
| Elite 1x | $6,499 | RED XPLR AXS 1x with power | Carbon rigid fork | Premium carbon gravel |
These builds use SRAM drivetrains. Select your build tier, size and finish. Saddle, tires, gearing and cockpit can be tailored to fit, terrain and budget. Comparable substitutions and custom work are confirmed before the build is finalized. Photographs show individual builds; components and finishes may differ from your selected package.
Choose your finish

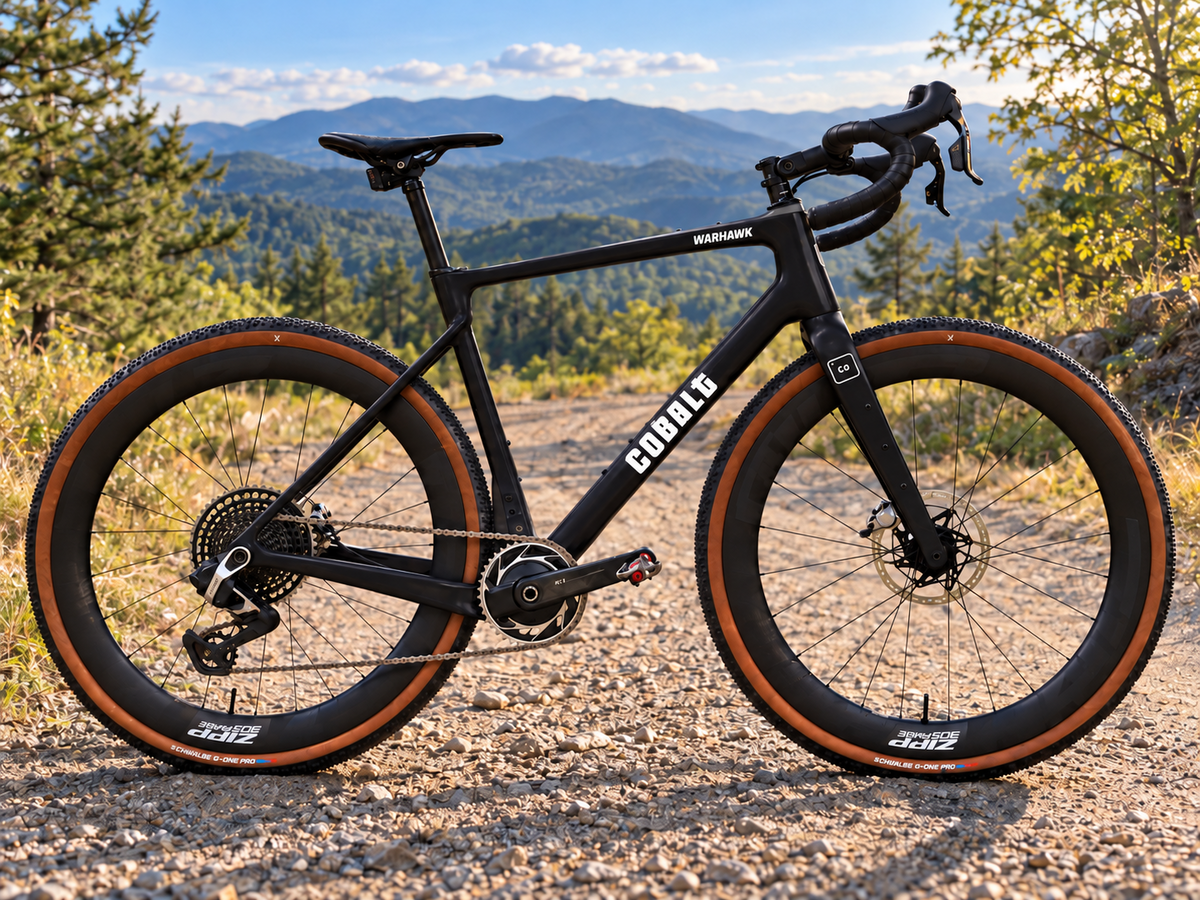

Matte Black / White Decals — Included

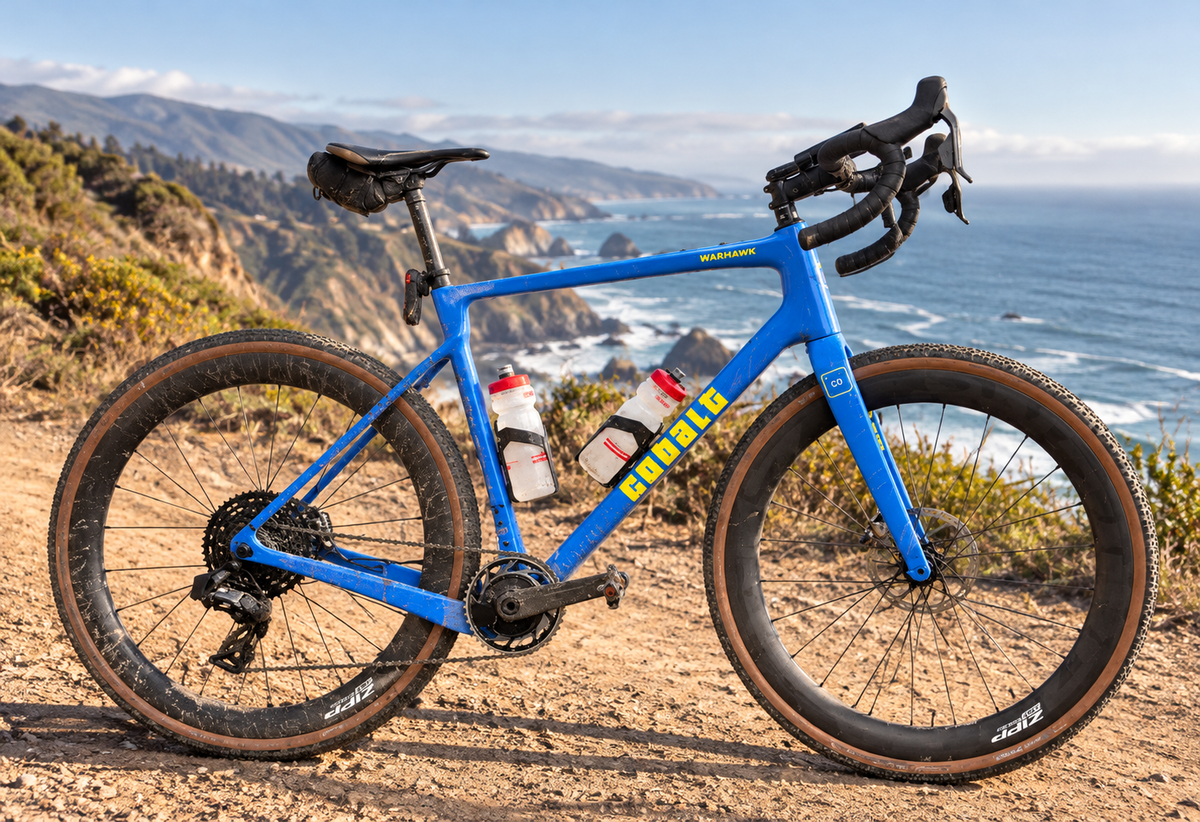

Gloss Blue / Black Decals — Included
Custom 1-Color — +$250
Custom 2-Color — +$400
Premium / Complex Paint — Contact us for a quote
Explore custom paint colors and options.
Frame specifications
| Detail | Specification |
|---|---|
| Frame | T800 Toray carbon; 1,300 g frame, 470 g fork |
| Sizes | XS, S, M, L, XL, XXL |
| Tire clearance | 700C × 50 mm or 650B × 2.1 in |
| Bottom bracket | BSA 68 mm threaded |
| Seatpost | 27.2 mm; dropper ready |
| Axles | 12 × 100 mm front / 12 × 142 mm rear |
| Brakes | Flat mount; 160 / 180 mm |
| Headset | 1.5 in upper / 1.5 in lower; fully internal routing |
| Drivetrain | UDH; maximum 52/36 double or 46T single |
| Mounts | Rack, fenders and three bottles |
Published frame weights are reference values and vary with size and finish.
Geometry & sizing
Use the model-specific chart below with your fit measurements. Dimensions are in millimeters unless shown otherwise.
| Size | Seat tube (mm) | Seat angle (°) | Effective top tube (mm) | Head tube (mm) | Head angle (°) | Fork length (mm) | Fork offset (mm) | Wheelbase (mm) | Front center (mm) | Chainstay (mm) | BB drop (mm) | Reach (mm) | Stack (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 450 | 74.5 | 525 | 120 | 70 | 400 | 50 | 1029 | 604 | 435 | 70 | 375 | 542 |
| S | 470 | 73.5 | 545 | 135 | 70.3 | 400 | 50 | 1037 | 612 | 435 | 70 | 380 | 558 |
| M | 490 | 73.5 | 560 | 150 | 70.5 | 400 | 50 | 1050 | 625 | 435 | 70 | 390 | 575 |
| L | 510 | 73.5 | 577 | 170 | 72 | 400 | 50 | 1053 | 628 | 435 | — | 400 | 596 |
| XL | 530 | 73.5 | 595 | 190 | 72.5 | 400 | 50 | 1067 | 641 | 435 | 70 | 412 | 619 |
| XXL | 560 | 73.5 | 615 | 210 | 72.5 | 400 | 50 | 1087 | 661 | 435 | 70 | 426 | 638 |
The source chart leaves size L bottom-bracket drop blank; it is shown as an em dash.
Your Cobalt, your way
Explore standard finishes and custom paint or talk with Cobalt about your build.
Cobalt carbon road, gravel and hardtail frames carry a lifetime frame warranty for the original owner. Read warranty coverage and terms.
Build Ride Inspire
Ordering & delivery
Typical custom builds take about 3–4 weeks to source components, assemble and ship, depending on component availability. Custom paint can take longer. Complete bikes ship free within the lower 48 U.S. states; confirm international and special shipping with Cobalt. Read ordering, assembly and return details.
