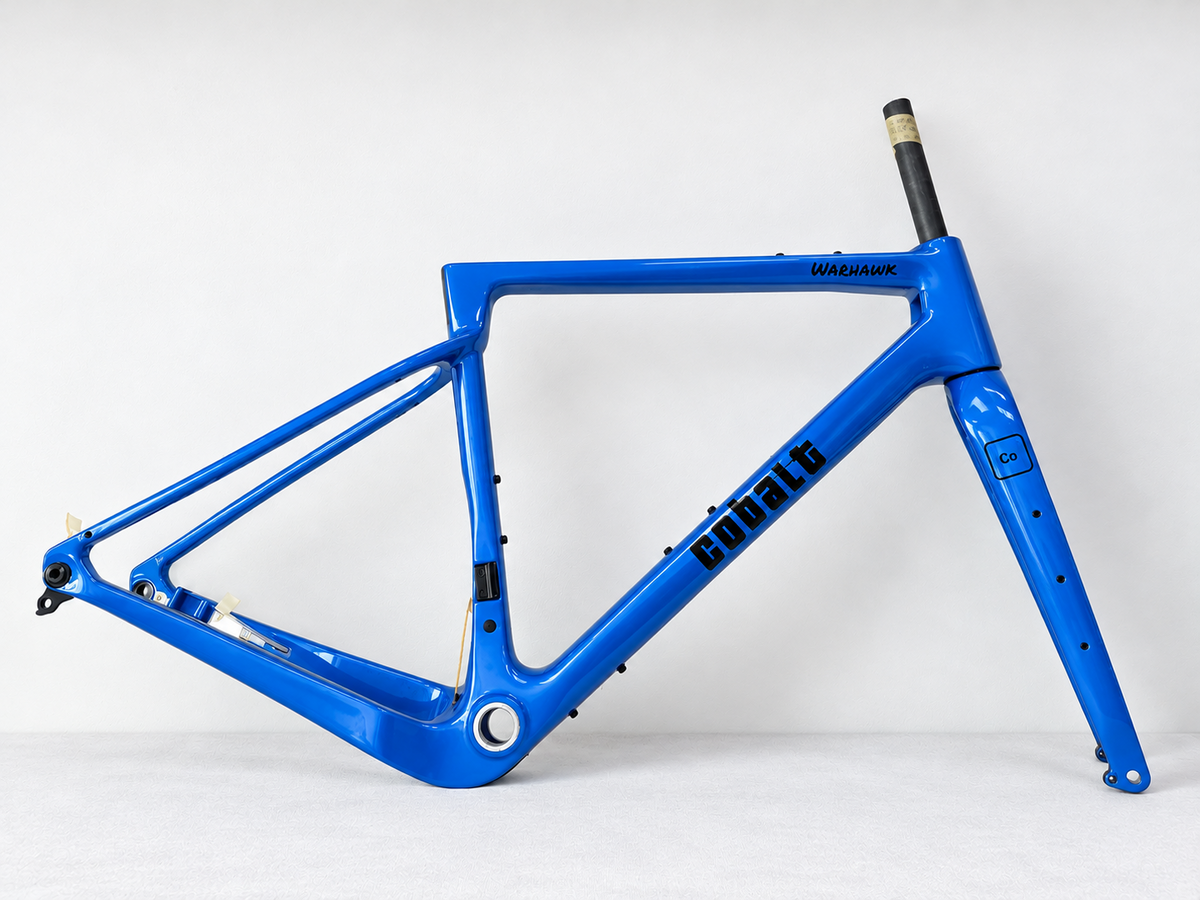

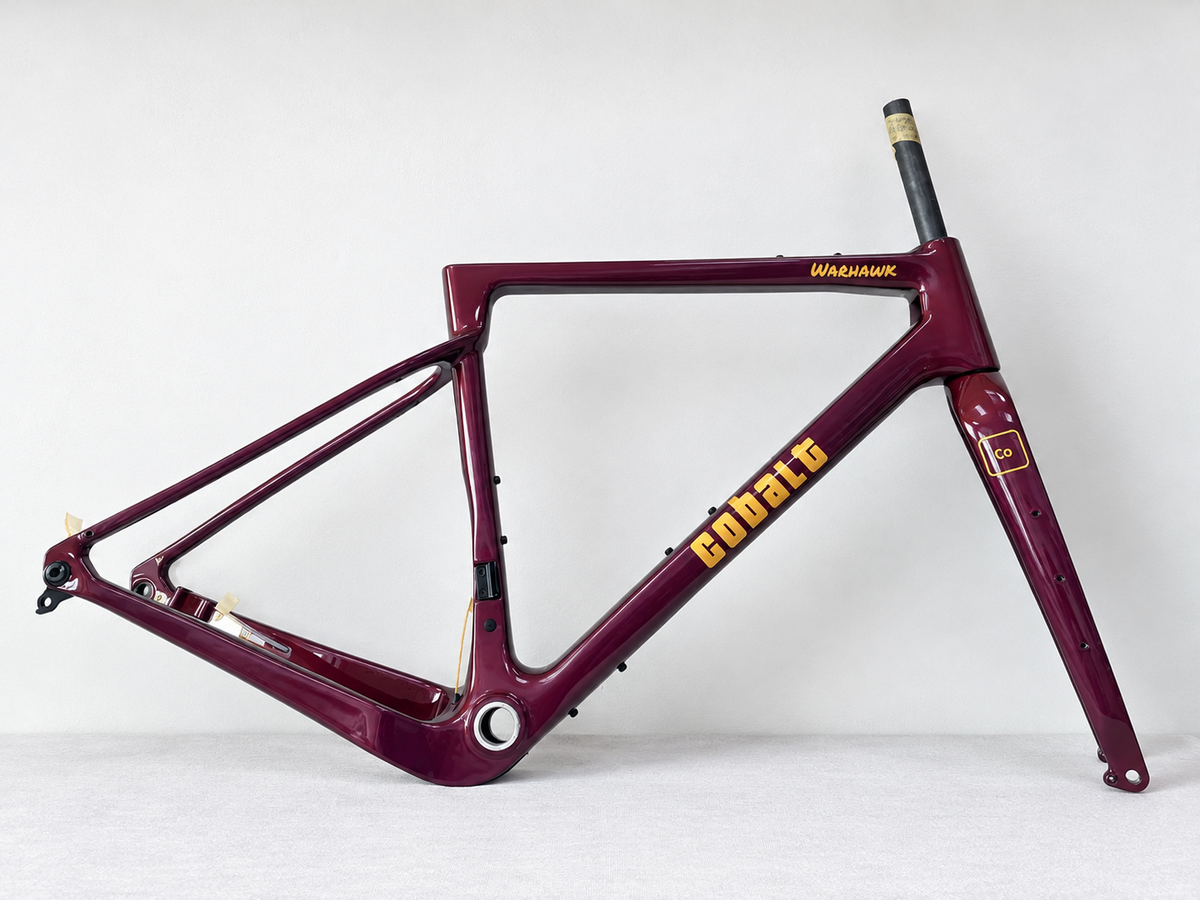

Warhawk Carbon Frame Package
Warhawk Carbon Frame Package
Standard finishes are included. Custom 1-Color adds $250; Custom 2-Color adds $400.
Premium / Complex Paint — Contact us for a quote · Explore paint options
Built to order
Your Cobalt is prepared for you. Timing varies with frame availability, paint, and component selection. Contact us for a current delivery estimate.
Build the gravel bike you actually want.
The 2027 Cobalt Warhawk Carbon Frame Package is the foundation for a fast, capable custom gravel bike. Built from 100% T800 Toray carbon fiber, the current-generation Warhawk combines progressive gravel geometry, generous tire clearance and modern component standards for racing, long-distance events, bikepacking and exploration.
Who It’s For
Choose the Warhawk frame when gravel and off-pavement capability are the priority and you want to select the drivetrain, wheels, cockpit, gearing and finish yourself. If your riding is predominantly pavement with smooth gravel mixed in, consider the Marauder all-road platform.
Frame Specifications
| Material | 100% T800 Toray carbon fiber |
| Sizes | XS / S / M / L / XL / XXL |
| Frame weight | Approx. 1,300 g |
| Fork weight | Approx. 470 g |
| Maximum tire | 700C×50 mm / 650B×2.1 in |
| Axles | 12×100 mm front / 12×142 mm rear |
| Rear derailleur | SRAM UDH compatible |
| Bottom bracket | BSA 68 mm threaded |
| Seatpost | 27.2 mm |
| Headset | 1-1/2 in–1-1/2 in, fully internal |
| Brakes / rotors | Flat mount disc / 160–180 mm |
| Max chainring | 52/36T double or 46T single |
| Mounts | Rack and fender mounts; 3 bottle mounts |
| Routing | Fully internal; dropper-post ready |
What’s Included
Frame package includes the carbon frame, carbon fork, carbon seatpost, headset and thru-axles.
Built Around You
Select your size and finish and order the frame package directly. If you want help turning it into a complete Cobalt, Build Your Cobalt can cover fit, drivetrain, wheels, gearing, cockpit, tires and paint. A consultation is optional, not required.
Current Generation
This listing is for the current 2027 Warhawk platform. Earlier Warhawk generations use different geometry and specifications; previous-generation information is kept separately in the Cobalt Archive so older specifications are not confused with the current frame.
Build Ride Inspire
Geometry & sizing
| Size | Seat tube (mm) | Seat angle (°) | Effective top tube (mm) | Head tube (mm) | Head angle (°) | Fork length (mm) | Fork offset (mm) | Wheelbase (mm) | Front center (mm) | Chainstay (mm) | BB drop (mm) | Reach (mm) | Stack (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 450 | 74.5 | 525 | 120 | 70 | 400 | 50 | 1029 | 604 | 435 | 70 | 375 | 542 |
| S | 470 | 73.5 | 545 | 135 | 70.3 | 400 | 50 | 1037 | 612 | 435 | 70 | 380 | 558 |
| M | 490 | 73.5 | 560 | 150 | 70.5 | 400 | 50 | 1050 | 625 | 435 | 70 | 390 | 575 |
| L | 510 | 73.5 | 577 | 170 | 72 | 400 | 50 | 1053 | 628 | 435 | — | 400 | 596 |
| XL | 530 | 73.5 | 595 | 190 | 72.5 | 400 | 50 | 1067 | 641 | 435 | 70 | 412 | 619 |
| XXL | 560 | 73.5 | 615 | 210 | 72.5 | 400 | 50 | 1087 | 661 | 435 | 70 | 426 | 638 |
The source chart leaves size L bottom-bracket drop blank; it is shown as an em dash.
