Spitfire Road Bike
Spitfire Road Bike
Built to order
Your Cobalt is prepared for you. Timing varies with frame availability, paint, and component selection. Contact us for a current delivery estimate.
Build Ride Inspire
Spitfire keeps the focus on paved roads: climbing, quick accelerations and the rhythm of a fast group ride. Its road-specific carbon frame and rigid fork suit riders who want a direct connection between pedaling effort and speed, with a build tailored to their fit. Choose it for road training, spirited club rides and long paved routes. Riders planning frequent loose gravel should compare Warhawk and Marauder before choosing tire clearance and gearing.
Choose your build
| Build | Price (USD) | SRAM drivetrain | Fork / suspension | Wheels |
|---|---|---|---|---|
| Core | $3,799 | Rival AXS 2x | Carbon road fork | Alloy road |
| Performance | $4,999 | Force AXS 2x with power | Carbon road fork | Carbon road |
| Elite | $7,199 | RED AXS 2x with power | Carbon road fork | Premium aero carbon |
These builds use SRAM drivetrains. Select your build tier, size and finish. Saddle, tires, gearing and cockpit can be tailored to fit, terrain and budget. Comparable substitutions and custom work are confirmed before the build is finalized. Photographs show individual builds; components and finishes may differ from your selected package.
Choose your finish

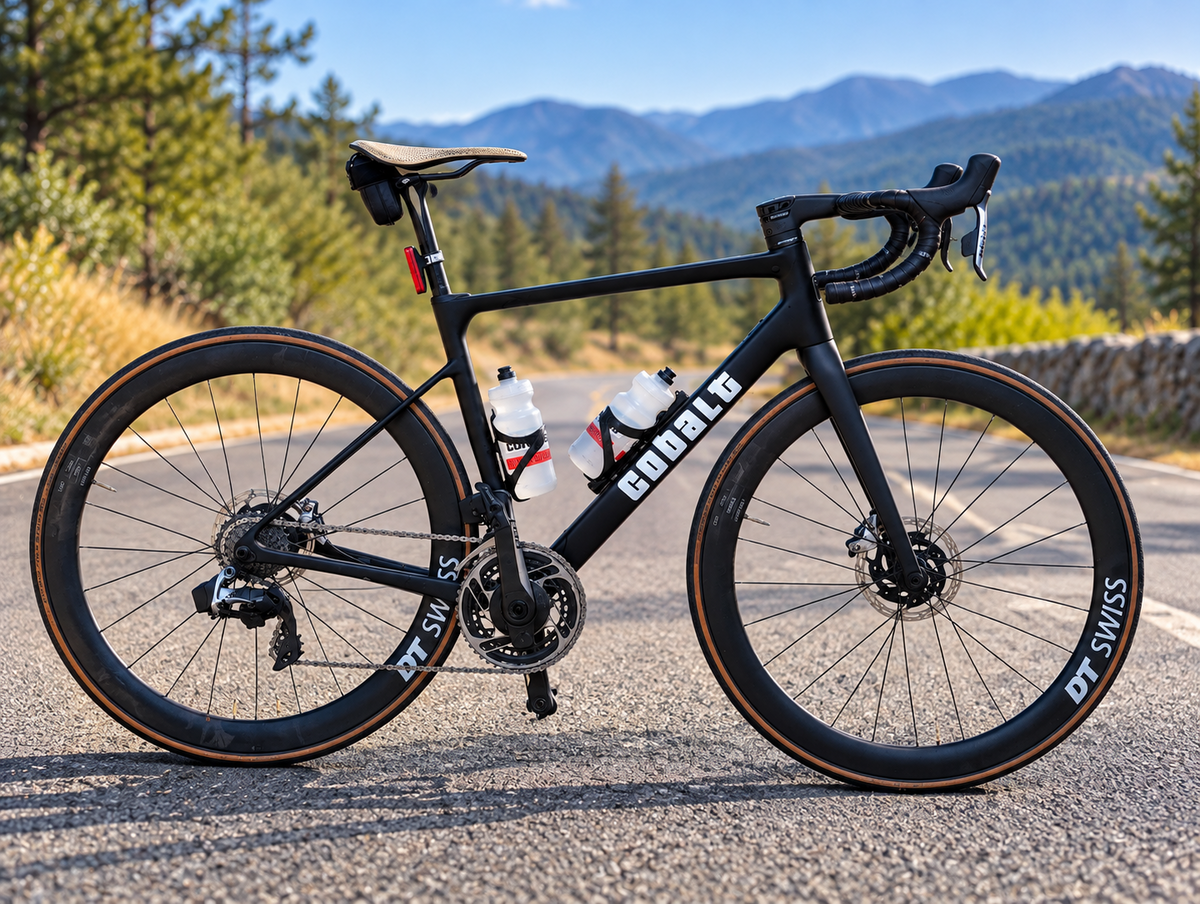

Matte Black / White Decals — Included

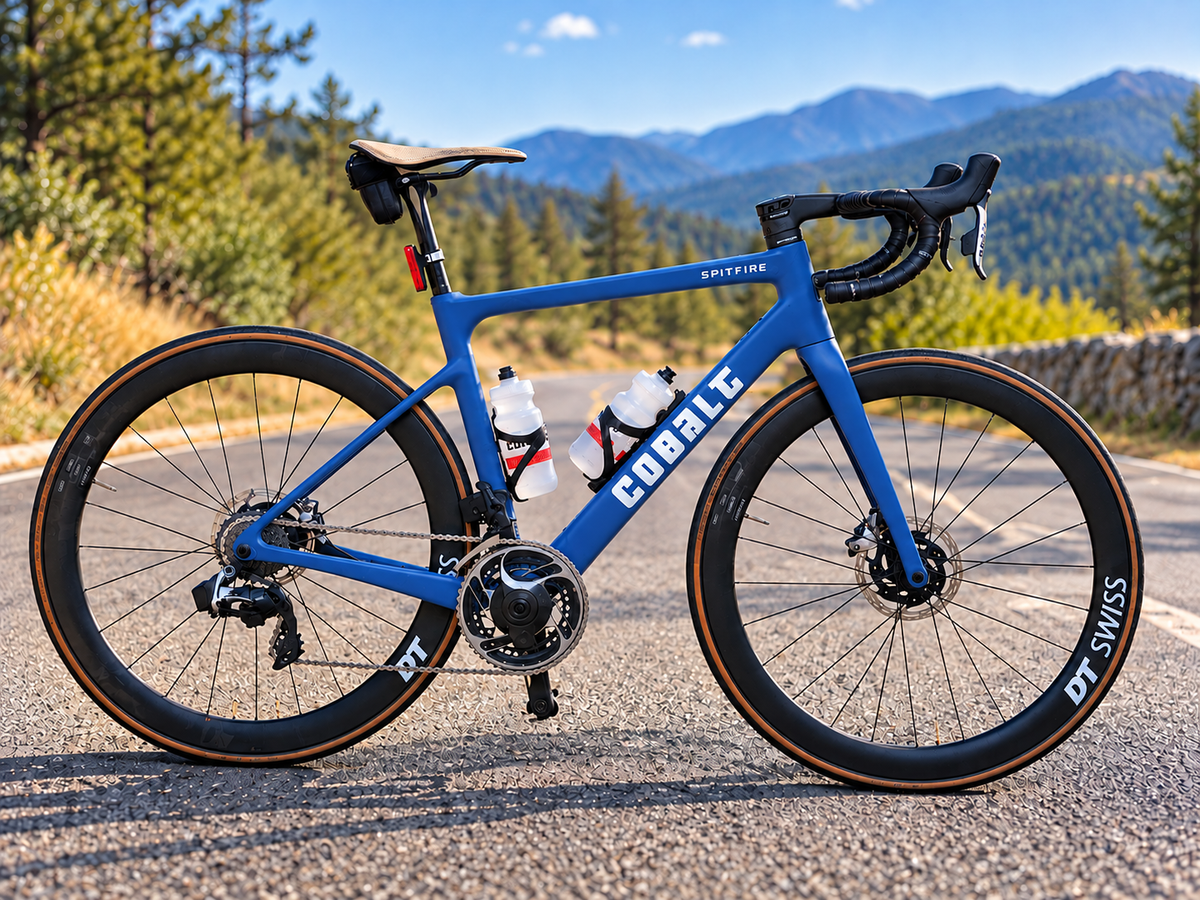

Gloss Blue / Black Decals — Included
Custom 1-Color — +$250
Custom 2-Color — +$400
Premium / Complex Paint — Contact us for a quote
Explore custom paint colors and options.
Frame specifications
| Detail | Specification |
|---|---|
| Frame | Carbon; 1,050 ± 50 g frame, 480 ± 15 g fork |
| Sizes | XS, S, M, L, XL |
| Tire clearance | 700C × 32 mm |
| Bottom bracket | BSA 68 mm threaded |
| Seatpost | 27.2 mm |
| Axles | 12 × 100 mm front / 12 × 142 mm rear |
| Brakes | Flat mount; 140 / 160 mm |
| Headset | 1.5 in upper / 1.5 in lower; ACR internal routing |
| Chainring clearance | Maximum 52/36 double or 46T single |
| Routing | Fully internal; Di2 compatible |
Published frame weights are reference values and vary with size and finish.
Geometry & sizing
Use the model-specific chart below with your fit measurements. Dimensions are in millimeters unless shown otherwise.
| Size | Seat tube (mm) | Seat angle (°) | Effective top tube (mm) | Head tube (mm) | Head angle (°) | Fork length (mm) | Fork offset (mm) | Wheelbase (mm) | Front center (mm) | Chainstay (mm) | BB drop (mm) | Reach (mm) | Stack (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 430 | 74.8 | 516 | 120 | 70.8 | 380 | 45 | 986.1 | 582.8 | 415 | 75 | 370.8 | 532.8 |
| S | 460 | 74.3 | 530 | 138 | 71.7 | 380 | 45 | 987.8 | 584.5 | 415 | 75 | 374.2 | 553.1 |
| M | 490 | 73.9 | 546 | 157 | 72 | 380 | 45 | 998.6 | 594.6 | 415 | 73 | 380.8 | 571.2 |
| L | 520 | 73.5 | 560 | 172.6 | 73 | 380 | 45 | 998.4 | 594.4 | 415 | 73 | 385 | 589.3 |
| XL | 550 | 73 | 580 | 195 | 73 | 380 | 45 | 1012.9 | 608.8 | 415 | 73 | 392.9 | 610.6 |
Your Cobalt, your way
Explore standard finishes and custom paint or talk with Cobalt about your build.
Cobalt carbon road, gravel and hardtail frames carry a lifetime frame warranty for the original owner. Read warranty coverage and terms.
Build Ride Inspire
Ordering & delivery
Typical custom builds take about 3–4 weeks to source components, assemble and ship, depending on component availability. Custom paint can take longer. Complete bikes ship free within the lower 48 U.S. states; confirm international and special shipping with Cobalt. Read ordering, assembly and return details.
