Marauder All-Road Bike

Built to order

Your Cobalt is prepared for you. Timing varies with frame availability, paint, and component selection. Contact us for a current delivery estimate.

The new Marauder is for the ride that refuses to stay in one lane: a brisk road group, rolling backroads, a gravel shortcut or a cyclocross course. Build it around the surfaces you ride most, with gearing, tires and cockpit selected for your fit and goals.

The new Marauder platform

A lighter carbon platform, integrated cable routing, a threaded T47 bottom bracket and a Universal Derailleur Hanger bring the Marauder into its next generation. Standard Marauder builds use SRAM AXS 2x drivetrains.

Choose your build

Build	Price (USD)	SRAM drivetrain	Fork / suspension	Wheels	Power meter
Core	$3,799	Rival AXS 2x	Carbon rigid fork	FSA NS AGX i25	Not included
Performance	$4,999	Force AXS 2x	Carbon rigid fork	Zipp 404 S	Included
Elite	$7,199	RED AXS 2x	Carbon rigid fork	Zipp 303 SW	Included

Select your build tier, size and finish. Saddle, tires, gearing and cockpit can be tailored to fit, terrain and budget. Comparable substitutions and custom work are confirmed before the build is finalized. Photographs show individual builds; components and finishes may differ from your selected package.

Choose your finish

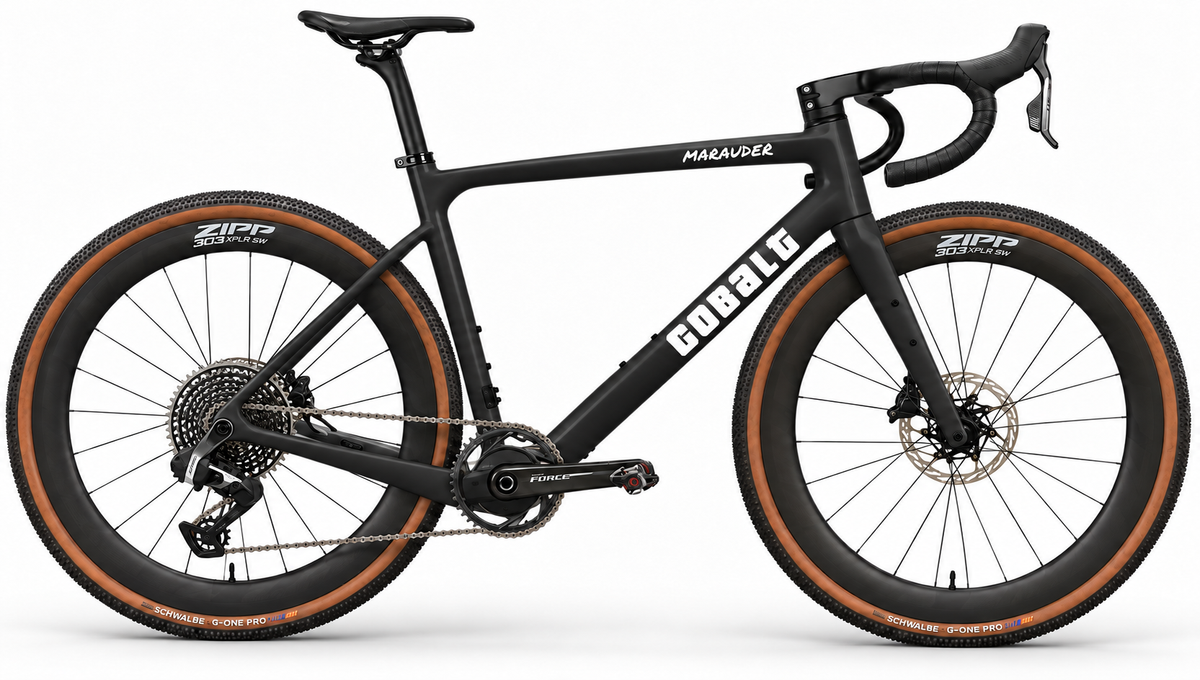

Matte Black / White Decals — Included
Gloss Blue / Black Decals — Included
Custom 1-Color — +$250
Custom 2-Color — +$400
Premium / Complex Paint — Contact us for a quote

Frame specifications

Detail	Specification
Platform	Cobalt Marauder all-road; racing geometry
Construction	T800/T1000 carbon; UD finish; EPS molding
Reference weight	Medium frame: 1,000 ± 50 g; fork: 420 ± 15 g
Frame sizes	48, 51, 54, 57 and 60 cm
Maximum tire clearance	700 × 42 mm / 650B × 47 mm
Bottom bracket	T47, 68 mm threaded shell
Rear derailleur hanger	UDH — Universal Derailleur Hanger
Seatpost	27.2 mm; zero or 25 mm setback
Thru-axles	Front: 12 × 100 mm; rear: 12 × 142 mm
Axle hardware	Front: 125 mm length, 1.5 mm thread pitch; rear: 172 mm length, 1.0 mm pitch
Brakes	Flat-mount disc; 160 mm rotors
Headset	1½″ upper and lower; ACR routing
Chainring limits	52/36T double or 42T single
Cable routing	Integrated
Cockpit options	80 × 400, 90 × 420, 90 × 440 or 100 × 440 mm (stem × bar width)

Frame and fork weights are reference figures, not complete-bike weights. Finish, size and build choices affect the final weight. Tire fit depends on actual tire width, rim and riding conditions; allow appropriate clearance for mud.

Geometry & sizing

Compare Marauder fit using the dimensions below, verified against the individual frame drawings for each size. Geometry lengths are rounded to the nearest millimetre; angles are in degrees. Component fit dimensions retain their specified precision.

Measurement	XS	S	M	L	XL
Reach	356	365	378	388	403
Stack	521	544	571	595	614
Effective top tube	515	531	547	570	591
Seat tube (C–T)	468	498	528	558	588
Head angle (°)	70	71	72	72	73
Seat angle (°)	73	73	73.5	73	73
Head tube	110	130	155	180	200
Chainstay	420	420	420	420	420
Wheelbase	987	994	1007	1025	1046
Front centre	578	585	598	616	637
Bottom bracket drop	73	73	73	73	73
Bottom bracket type	T47–68	T47–68	T47–68	T47–68	T47–68
Fork length (axle to crown)	384	384	384	384	384
Fork offset	51	51	51	51	51
Seatpost diameter	27.2	27.2	27.2	27.2	27.2

Your Cobalt, your way

Cobalt carbon road, gravel and hardtail frames carry a lifetime frame warranty for the original owner. Read warranty coverage and terms.

Ordering & delivery

Typical custom builds take about 3–4 weeks to source components, assemble and ship, depending on component availability. Custom paint can take longer. Complete bikes ship free within the lower 48 U.S. states; confirm international and special shipping with Cobalt. Read ordering, assembly and return details.
